/github/workspace/dgus_control_curve.h File Reference

DGUS II LCD Driver Utility functions. More...

#include <stddef.h>
#include <stdint.h>
#include "dgus_reg.h"
#include "dgus.h"

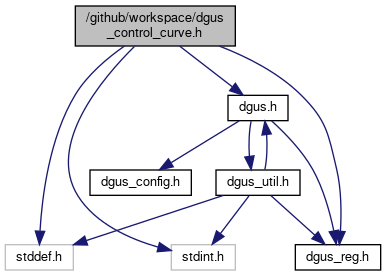

Include dependency graph for dgus_control_curve.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	CURVE_ADDRESS   0x0310
#define	CURVE_HEADER   0x5AA5

Functions
struct	__attribute__ ((packed)) realtime_curve
	SP Structure for realtime curve control. More...
curve *	dgus_curve_buffer_create (uint8_t num_curves, uint8_t datapoint_buffer_len)
	Initialise a new curve buffer, allocating the memory required. More...
void	dgus_curve_init_channel (curve *cur, uint8_t channel_id)
	Initialise a channel. More...
DGUS_RETURN	dgus_curve_send_data (curve *cur)
	Send the data we have aggregated in the curve instance. More...
DGUS_RETURN	dgus_curve_add_data (curve *cur, uint8_t chan_id, uint16_t data)
	Append some data to the curve buffer for batch sending. More...
DGUS_RETURN	dgus_curve_reset (curve *cur, uint8_t chan_id)
	Reset a curve on screen. This will not affect the buffer. More...
void	dgus_curve_destroy (curve *cur)
	Destroy a curve buffer and all. More...

Variables
	realtime_curve

Detailed Description

DGUS II LCD Driver Utility functions.

Author

Barry Carter

Date

01 Jan 2021

Macro Definition Documentation

CURVE_ADDRESS

#define CURVE_ADDRESS   0x0310

VAR address to write each datapoint to

CURVE_HEADER

#define CURVE_HEADER   0x5AA5

CMD header to enable write mode

Function Documentation

__attribute__()

struct __attribute__

(

(packed)

)

SP Structure for realtime curve control.

Returns

typedef struct

dgus_curve_add_data()

DGUS_RETURN dgus_curve_add_data	(	curve *	cur,
		uint8_t	chan_id,
		uint16_t	data
	)

Append some data to the curve buffer for batch sending.

Parameters

cur	curve handle
chan_id	channel id
data	data to append

Returns

DGUS_RETURN buffer full etc

dgus_curve_buffer_create()

curve* dgus_curve_buffer_create	(	uint8_t	num_curves,
		uint8_t	datapoint_buffer_len
	)

Initialise a new curve buffer, allocating the memory required.

Warning

See datasheet regarding memory ranges. If you enable a channel, it will consume VP memory. You cannot re-use this memory for other controls. For example, channel 0: 0x1000-0x17FF channel 1: 0x1800-0x1FFF .. channel 7: 0x4800-0x4FFF

Note

if a channel is not in use, you may re-use the memory. If you use the channel at all, anywhere, you cannot use this memory. i.e. using a different page and reusing curve memory will not work

Parameters

num_curves	How many channels are enabled on the DGUS
datapoint_buffer_len	How much data should be send at once

Returns

curve* Opaque reference to the curve

dgus_curve_destroy()

void dgus_curve_destroy

(

curve *

cur

)

Destroy a curve buffer and all.

Parameters

cur

curve

dgus_curve_init_channel()

void dgus_curve_init_channel	(	curve *	cur,
		uint8_t	channel_id
	)

Initialise a channel.

Parameters

cur	curve handle
channel_id	channel id we want to send data to

dgus_curve_reset()

DGUS_RETURN dgus_curve_reset	(	curve *	cur,
		uint8_t	chan_id
	)

Reset a curve on screen. This will not affect the buffer.

Parameters

cur	curve handle
chan_id	channel id

Returns

DGUS_RETURN

dgus_curve_send_data()

DGUS_RETURN dgus_curve_send_data

(

curve *

cur

)

Send the data we have aggregated in the curve instance.

Parameters

cur	the curve handle

Returns

DGUS_RETURN

Variable Documentation

realtime_curve

realtime_curve

Curve Data
