/github/workspace/dgus_lcd.c File Reference

DGUS II LCD Driver Utility functions. More...

#include <string.h>
#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <stddef.h>
#include <time.h>
#include "dgus.h"

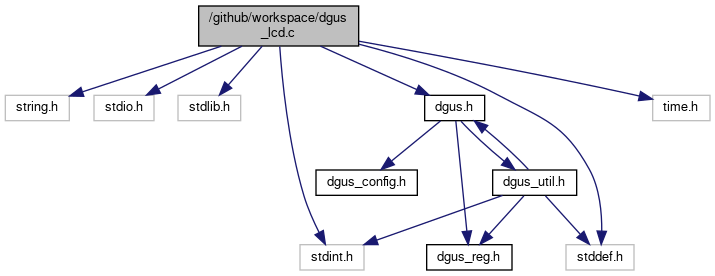

Include dependency graph for dgus_lcd.c:

Functions
struct	__attribute__ ((packed))
	A packet header that every packet needs len incudes data + 1 (for cmd byte) More...
void	dgus_init (ser_available_handler_cb avail, ser_recv_handler_cb recv, ser_send_handler_cb send, packet_handler_cb packet_handler)
	Initialise the DGUS LCD interface. More...
DGUS_RETURN	_polling_wait ()
	Wait for the OK to return or data to arrive. More...
DGUS_RETURN	send_data (enum command cmd, dgus_packet *p)
	actually send the packet p with write cmd More...
int	dgus_recv_data ()
	Receive and process data from the serial port. Call this in your main loop. More...
void	buffer_u8 (dgus_packet *p, uint8_t *data, size_t len)
	Append 1 byte len bytes to the send buffer in 8 bit format. More...
void	buffer_u16 (dgus_packet *p, uint16_t *data, size_t len)
	Append 2 bytes len bytes to the send buffer in 16 bit format. More...
void	buffer_u32 (dgus_packet *p, uint32_t *data, size_t len)
	Append 4 bytes len bytes to the send buffer in 2x word format. More...
void	buffer_u32_1 (dgus_packet *p, uint32_t data)
	Append 4 bytes 1 long of data to the send buffer in 8 bit format. More...
dgus_packet *	dgus_packet_init ()
	Manually initialise the packet sending buffer. More...
void	dgus_packet_set_data (dgus_packet *p, uint8_t offset, uint8_t *data, uint8_t len)
	Write 8 bites of data at position n in the buffer. More...
DGUS_RETURN	dgus_request_var (uint16_t addr, uint8_t len)
	Async request a variable It is up to you to read the response. More...
DGUS_RETURN	dgus_get_var8 (uint16_t addr, uint8_t *buf, uint8_t len)
	Get len 8 bit bytes from the device. no encoding is applied. More...
DGUS_RETURN	dgus_get_var (uint16_t addr, uint16_t *buf, uint8_t len)
	Read len bytes into buf at address addr. More...
DGUS_RETURN	dgus_set_var (uint16_t addr, uint32_t data)
	Set data variable into addr on the DGUS. More...
DGUS_RETURN	dgus_set_var8 (uint16_t addr, uint8_t *data, uint8_t len)
	Set len 8 bit bytes to the device. no encoding is applied. More...
DGUS_RETURN	dgus_set_cmd (uint16_t addr, uint8_t *data, uint8_t len)
	Set data in the cmd area of the configuration. More...
DGUS_RETURN	dgus_get_cmd (uint16_t addr, uint8_t *data, uint8_t len)
	Get data from the cmd registers. More...
void	dgus_packet_set_len (dgus_packet *p, uint16_t len)
	Override a packets current length. More...
uint8_t *	dgus_packet_get_recv_buffer ()
	Get a pointer the current data recv buffer. More...
DGUS_RETURN	_polling_read_16 (uint8_t *buf, uint8_t len)
	Poll and read a 16 bit return value. More...

Variables
	dgus_packet_header
	dgus_var_data

Detailed Description

DGUS II LCD Driver Utility functions.

Author

Barry Carter

Date

01 Jan 2021

Function Documentation

__attribute__()

struct __attribute__

(

(packed)

)

A packet header that every packet needs len incudes data + 1 (for cmd byte)

Returns

typedef struct

_polling_read_16()

DGUS_RETURN _polling_read_16	(	uint8_t *	buf,
		uint8_t	len
	)

Poll and read a 16 bit return value.

Parameters

buf
len

Returns

Response such as DGUS_TIMEOUT

_polling_wait()

DGUS_RETURN _polling_wait

(

)

Wait for the OK to return or data to arrive.

Returns

uint8_t

buffer_u16()

void buffer_u16	(	dgus_packet *	p,
		uint16_t *	data,
		size_t	len
	)

Append 2 bytes len bytes to the send buffer in 16 bit format.

Parameters

p	dgus_packet packet
data	data to write
len	length of data bytes to write

buffer_u32()

void buffer_u32	(	dgus_packet *	p,
		uint32_t *	data,
		size_t	len
	)

Append 4 bytes len bytes to the send buffer in 2x word format.

Parameters

p	dgus_packet packet
data	data to write
len	length of data bytes to write

buffer_u32_1()

void buffer_u32_1	(	dgus_packet *	p,
		uint32_t	data
	)

Append 4 bytes 1 long of data to the send buffer in 8 bit format.

Parameters

p	dgus_packet packet
data	data to write

buffer_u8()

void buffer_u8	(	dgus_packet *	p,
		uint8_t *	data,
		size_t	len
	)

Append 1 byte len bytes to the send buffer in 8 bit format.

Parameters

p	dgus_packet packet
data	data to write
len	length of data bytes to write

dgus_get_cmd()

DGUS_RETURN dgus_get_cmd	(	uint16_t	addr,
		uint8_t *	data,
		uint8_t	len
	)

Get data from the cmd registers.

Parameters

addr
data
len

Returns

Response such as DGUS_TIMEOUT

dgus_get_var()

DGUS_RETURN dgus_get_var	(	uint16_t	addr,
		uint16_t *	buf,
		uint8_t	len
	)

Read len bytes into buf at address addr.

Parameters

addr
buf
len

Returns

Response such as DGUS_TIMEOUT

dgus_get_var8()

DGUS_RETURN dgus_get_var8	(	uint16_t	addr,
		uint8_t *	buf,
		uint8_t	len
	)

Get len 8 bit bytes from the device. no encoding is applied.

Parameters

addr
buf
len

Returns

Response such as DGUS_TIMEOUT

dgus_init()

void dgus_init	(	ser_available_handler_cb	avail,
		ser_recv_handler_cb	recv,
		ser_send_handler_cb	send,
		packet_handler_cb	packet_handler
	)

Initialise the DGUS LCD interface.

Callbacks allow platform independance. On Arduino like platforms, avail would be "SerialPort.available()"

Parameters

avail	ser_available_handler_cb callback for the amount of bytes available
recv	function that receives bytes from the serial port
send	function that sends bytes over the serial port
packet_handler	function that should be called when the lcd has sent a packet to be processed

dgus_packet_get_recv_buffer()

uint8_t* dgus_packet_get_recv_buffer

(

)

Get a pointer the current data recv buffer.

Returns

uint8_t*

dgus_packet_init()

dgus_packet* dgus_packet_init

(

)

Manually initialise the packet sending buffer.

Returns

dgus_packet* Opaque pointer to the packet buffer

dgus_packet_set_data()

void dgus_packet_set_data	(	dgus_packet *	p,
		uint8_t	offset,
		uint8_t *	data,
		uint8_t	len
	)

Write 8 bites of data at position n in the buffer.

Parameters

p	dgus_packet packet
offset	where in the buffer to write
data	data to write
len	length of data bytes to write

dgus_packet_set_len()

void dgus_packet_set_len	(	dgus_packet *	p,
		uint16_t	len
	)

Override a packets current length.

Parameters

p
len

dgus_recv_data()

int dgus_recv_data

(

)

Receive and process data from the serial port. Call this in your main loop.

Returns

int returns < 1 error, 0 for no data

dgus_request_var()

DGUS_RETURN dgus_request_var	(	uint16_t	addr,
		uint8_t	len
	)

Async request a variable It is up to you to read the response.

Parameters

addr	VAR Addres to read from
len	number of bytes to read

Returns

Response such as DGUS_TIMEOUT

dgus_set_cmd()

DGUS_RETURN dgus_set_cmd	(	uint16_t	addr,
		uint8_t *	data,
		uint8_t	len
	)

Set data in the cmd area of the configuration.

Warning

writing here is super dangerous

Parameters

addr
data
len

Returns

Response such as DGUS_TIMEOUT

dgus_set_var()

DGUS_RETURN dgus_set_var	(	uint16_t	addr,
		uint32_t	data
	)

Set data variable into addr on the DGUS.

Parameters

addr	address of the VAR data in word (u16) format
data	data to send

Returns

Response such as DGUS_TIMEOUT

dgus_set_var8()

DGUS_RETURN dgus_set_var8	(	uint16_t	addr,
		uint8_t *	data,
		uint8_t	len
	)

Set len 8 bit bytes to the device. no encoding is applied.

Parameters

addr
data
len

Returns

Response such as DGUS_TIMEOUT

send_data()

DGUS_RETURN send_data	(	enum command	cmd,
		dgus_packet *	p
	)

actually send the packet p with write cmd

Parameters

cmd	command type such as DGUS_CMD_VAR_W
p	packet handle

Returns

Response such as DGUS_TIMEOUT

Variable Documentation

dgus_packet_header

dgus_packet_header

packet header structure

dgus_var_data

dgus_var_data

Header for a VAR command
